Low Power SoCs
Low Power SoCs
System-Level Integrated Chip
Streamlined Hardware Design Cost
Meets Compact Design Trends

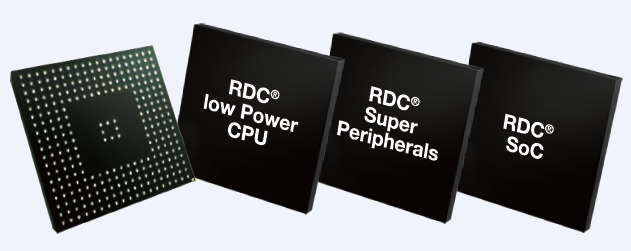

RDC R8620 Series: x86 Compatible Low-Power SoC Creates Highly Integrated Industrial Application Core
RDC's latest generation low-power R8620 series processor adopts a single system chip design, based on RDC RISC power-saving x86 compatible core architecture, operating at 400MHz. Highly integrated with DDR3 memory controller, PCI-Express interface, SATA storage interface, USB controller, SD card, PWM, ADC, Fast Ethernet and RDC 16-bit local bus to allow system developers to extend existing system functions without replacing current equipment. The R8620 series features networking capabilities and industrial-grade operating temperature characteristics, designed for target industries such as industrial automation, industrial control, smart grid data collection equipment, and emerging IoT applications. Following the requirements for small-sized devices and streamlined hardware design patterns, RDC's low-power processor also provides the RD6201 series with built-in memory single system chip, helping hardware engineers simplify PCB layout, thereby reducing board costs and improving quality reliability to accelerate product time-to-market for system developers. Operating system support includes Microsoft® operating systems and DOS family.
APPLICATION
Programmable Automation Controller
Embedded Board Solutions
Data Acquisition Controller
Industrial Automation Control
Products Item
View Product Model
Product
CPU Clock
DRAM
Ethernet
ADC
Temperature Sensor
Local Bus
ACPI
USB
UART
CAN
I2C
SD/SATA
PCIe
GPIO
SPI
Industrial Grade
R8620(16x16mm)
400Mhz
600Mbps-2GB
10/100 x 1
11bit- 8CH
V
8/16 bit
V
2.0 X 2
3
-
-
SW legacy compatible
1
15
boot
V
R8621(16x16mm)
400Mhz
600Mbps-2GB
10/100 x 1
11bit- 8CH
V
8 bit
V
2.0 X 2
3
1
1
SW legacy compatible
1
21
Boot / external
V
RD6201(19x19mm)
400Mhz
Embedded DDRIII 1Gb
10/100 x 1
11bit- 8CH
V
8/16 bit
V
2.0 X 2
3
-
-
SW legacy compatible
1
15
Boot
V
