RDC C613x Series Multi-function Peripheral Controller: Creating High-efficiency Data Communication Expansion Solutions

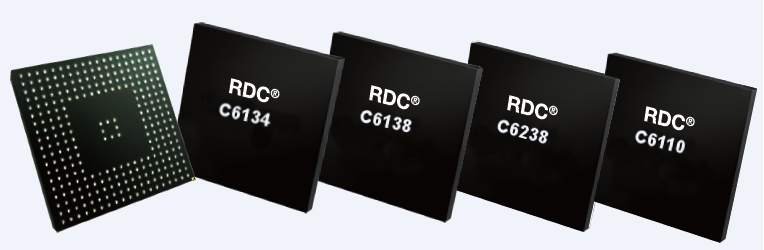

C6134, C6138 and C6238 are RDC multi-function peripheral controllers that expand PC and microcontroller peripheral functions through PCI-Express or PCI interfaces, and support widely used open Linux and Microsoft Windows operating systems, significantly reducing development costs. This product line integrates multiple 16C550-compatible UART ports and IEEE1284 parallel ports. Meanwhile, C6134 and C6138 are also equipped with DMA control circuits that increase data flow speed.
APPLICATION
Multi-port Communication Card
Industrial control through UART interface transmission has wide applications, such as gas station fuel control systems…
Products Item
View Product Model
Product
Host Interface
UART Ports
Max Data Rate (bps)
TX/RX FIFO (Byte)
Programmed Trigger Levels
Auto Flow Control
RS232 / RS485 / RS422 Support
Operating Temperature
Package
Parallel Port
KBC
CAN Bus Controller
I2C Bus Controller
SMBus Controller
GPIO Pins
Embedded Controller
ADC Channels
PECI Controller
PWM Controller
Power Management Channel Interface
Watchdog Timer
Case Open Monitor
Display Resolution
Output
Video Transition Interface
C6134 (13x13mm)
PCIe
4
10000000
128/128
V
V
V
-40°C~85°C
225 LFBGA
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
C6138(13x13mm)
PCIe
8
10000000
128/128
V
V
V
-40°C~85°C
225 LFBGA
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
C6238(20x20mm)
PCI
8
921600
64/64
V
V
V
-25°C~85°C
QFP-144
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
C6110 (13x13mm)
LPC/PCIe
8
-
-
-
-
-
-
-
1
1
2
2
2
96
32-bit X86 Core / 4K-Byte Internal SRAM / 1M-Byte Embedded SPI Flash
5
1
3 PWM Channels / 2 Tachometers
2
1
1
-
-
-
C6139(20x14mm)
PCIe
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1024x768@60Hz 16bpp with 65MHz
D-SUB / 24 bits or 12bits DVI / 24 bits or 12bits LVDS
8-bit ITU-R BT.656.
